Pure water equipment requirements:The water quality meets all the provisions of China pharmacopoeia standard and FDA; Automatic equipment operation and conditional automatic processing program (such as back flush, regeneration, acid-washing and disinfection procedures); Monomer and pipe equipment meet GMP requirements (all such back end processing equipments as sterilizer, membrane filtration, terminal water tank and pipeline adopt the 316L material and the pre-treatment pipeline adopts SUS304 material).
The S Series Multi-Effect Water Distiller is designed based on the principles of falling film evaporation and multi-effect evaporation. The first effect is heated by an external heat source (plant steam) to generate pure steam. Each subsequent effect utilizes the pure steam generated from the preceding effect as its heat source, enabling stepwise evaporation. The feed water that is not evaporated in the first effect enters the next effect for continued evaporation. This process continues sequentially, completing the multi-stage evaporation cycle.
The standard equipment model table shows the production capacity of the units at 3 bar pure steam pressure and 6 bar industrial steam pressure, expressed in kg/h. For certain equipment types, the actual production capacity should be calculated based on the actual operating pressure and multiplied by the specified capacity conversion factor. Regarding utility requirements, the industrial saturated steam must be free of impurities and corrosive substances, with a maximum allowable pressure of 9 bar. The feed water must be deionized water, free from silica, chlorine, amines, and volatile substances, with a required pressure of 1–2 bar. The power supply standard shall be provided according to customer requirements. Compressed air must be dry, oil-free, and clean, with a minimum required pressure of 6 bar.

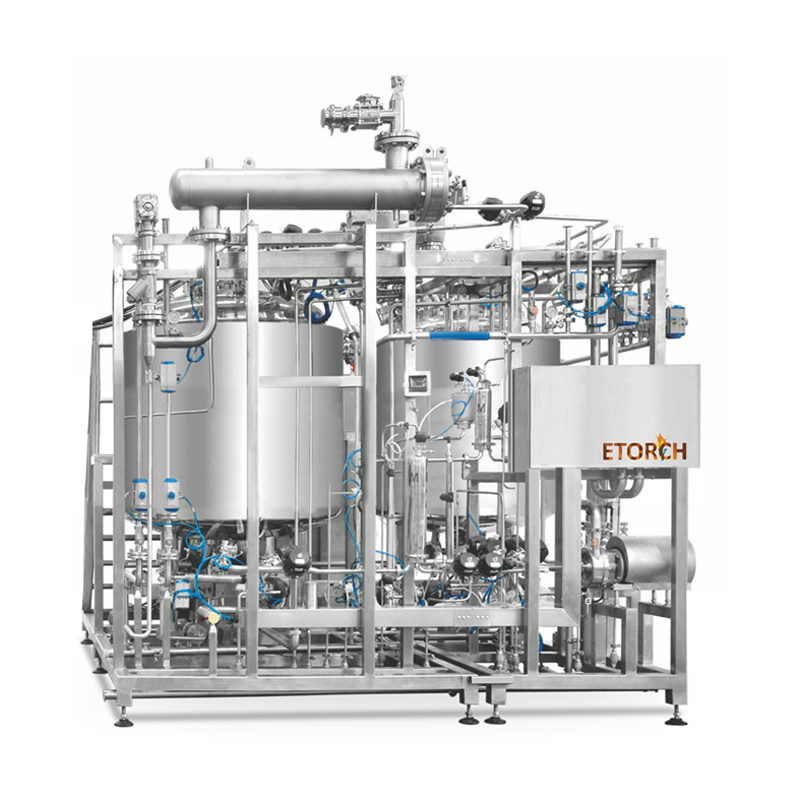

The Preparation System is designed for material preparation in industries such as bioengineering, large infusions, oral solutions, and fine chemistry. It effectively mitigates the risks of cross-contamination and product contamination during the preparation process, enhancing production efficiency and product reliability.

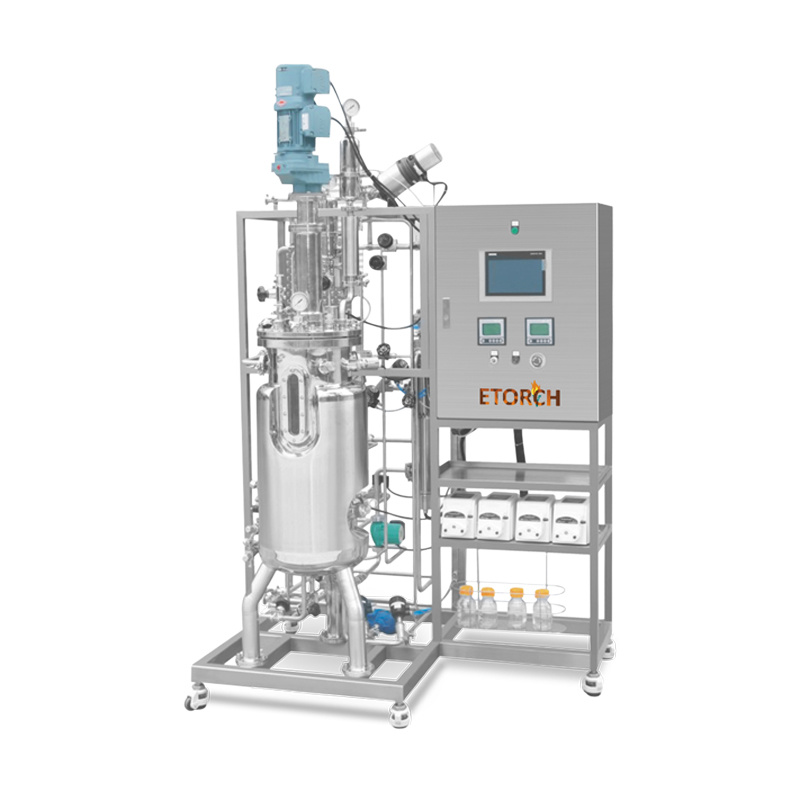

The fermentation system includes seed tanks, fermenters, control systems, air handling systems, feeding systems, piping systems, valves, operating platforms, and utilities. We also manufacture downstream processing systems for our clients. Based on user requirements, we can design complete fermentation workshops and are responsible for on-site installation and commissioning. Our company additionally provides employee training and supplies GMP documentation to assist users.
Pure water equipment requirements:The water quality meets all the provisions of China pharmacopoeia standard and FDA; Automatic equipment operation and conditional automatic processing program (such as back flush, regeneration, acid-washing and disinfection procedures); Monomer and pipe equipment meet GMP requirements (all such back end processing equipments as sterilizer, membrane filtration, terminal water tank and pipeline adopt the 316L material and the pre-treatment pipeline adopts SUS304 material).
The S Series Multi-Effect Water Distiller is designed based on the principles of falling film evaporation and multi-effect evaporation. The first effect is heated by an external heat source (plant steam) to generate pure steam. Each subsequent effect utilizes the pure steam generated from the preceding effect as its heat source, enabling stepwise evaporation. The feed water that is not evaporated in the first effect enters the next effect for continued evaporation. This process continues sequentially, completing the multi-stage evaporation cycle.
The standard equipment model table shows the production capacity of the units at 3 bar pure steam pressure and 6 bar industrial steam pressure, expressed in kg/h. For certain equipment types, the actual production capacity should be calculated based on the actual operating pressure and multiplied by the specified capacity conversion factor. Regarding utility requirements, the industrial saturated steam must be free of impurities and corrosive substances, with a maximum allowable pressure of 9 bar. The feed water must be deionized water, free from silica, chlorine, amines, and volatile substances, with a required pressure of 1–2 bar. The power supply standard shall be provided according to customer requirements. Compressed air must be dry, oil-free, and clean, with a minimum required pressure of 6 bar.
The Preparation System is designed for material preparation in industries such as bioengineering, large infusions, oral solutions, and fine chemistry. It effectively mitigates the risks of cross-contamination and product contamination during the preparation process, enhancing production efficiency and product reliability.
The fermentation system includes seed tanks, fermenters, control systems, air handling systems, feeding systems, piping systems, valves, operating platforms, and utilities. We also manufacture downstream processing systems for our clients. Based on user requirements, we can design complete fermentation workshops and are responsible for on-site installation and commissioning. Our company additionally provides employee training and supplies GMP documentation to assist users.
