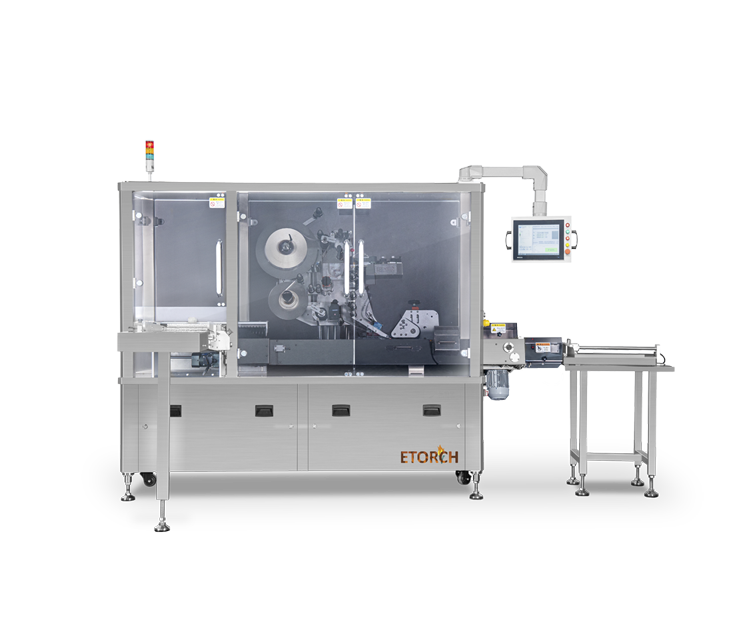

Y-500 Horizontal Labeling Machine
BRIEF INTRODUCTION
Standalone Machine Positioning
Independently performs the labeling process, meeting GMP requirements for standalone production.
Applicable Packaging Types & Specifications
Applicable containers:
Ampoules / oral liquid bottles / vials and other small round bottlesBottle diameter range:
Ø10–24 mm or Ø16–30 mmProduction capacity:
0–500 bottles/min
Process Flow
Manual / automatic bottle feeding → [Machine process: automatic labeling] → Bottle discharge
Key Technical Parameters

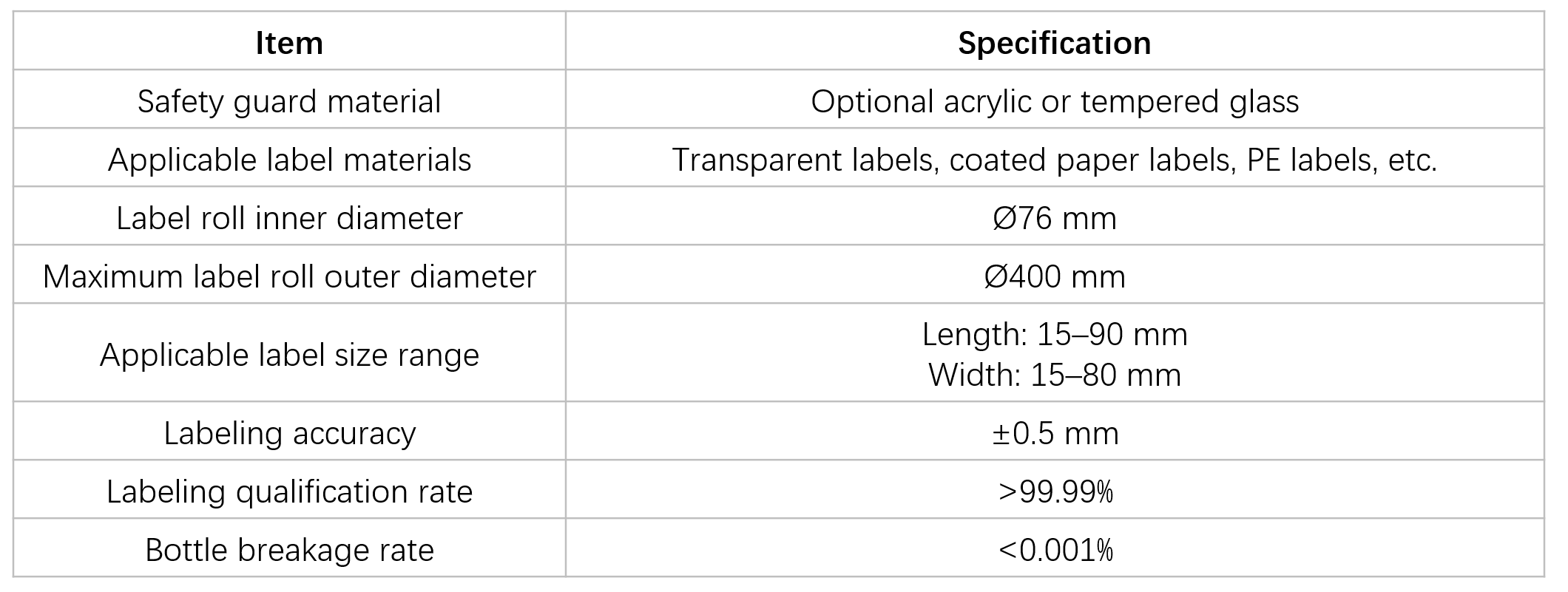

| Item | Specification |
|---|---|
| Safety guard material | Optional acrylic or tempered glass |
| Applicable label materials | Transparent labels, coated paper labels, PE labels, etc. |
| Label roll inner diameter | Ø76 mm |
| Maximum label roll outer diameter | Ø400 mm |
| Applicable label size range | Length: 15–90 mm Width: 15–80 mm |
| Labeling accuracy | ±0.5 mm |
| Labeling qualification rate | >99.99% |
| Bottle breakage rate | <0.001% |

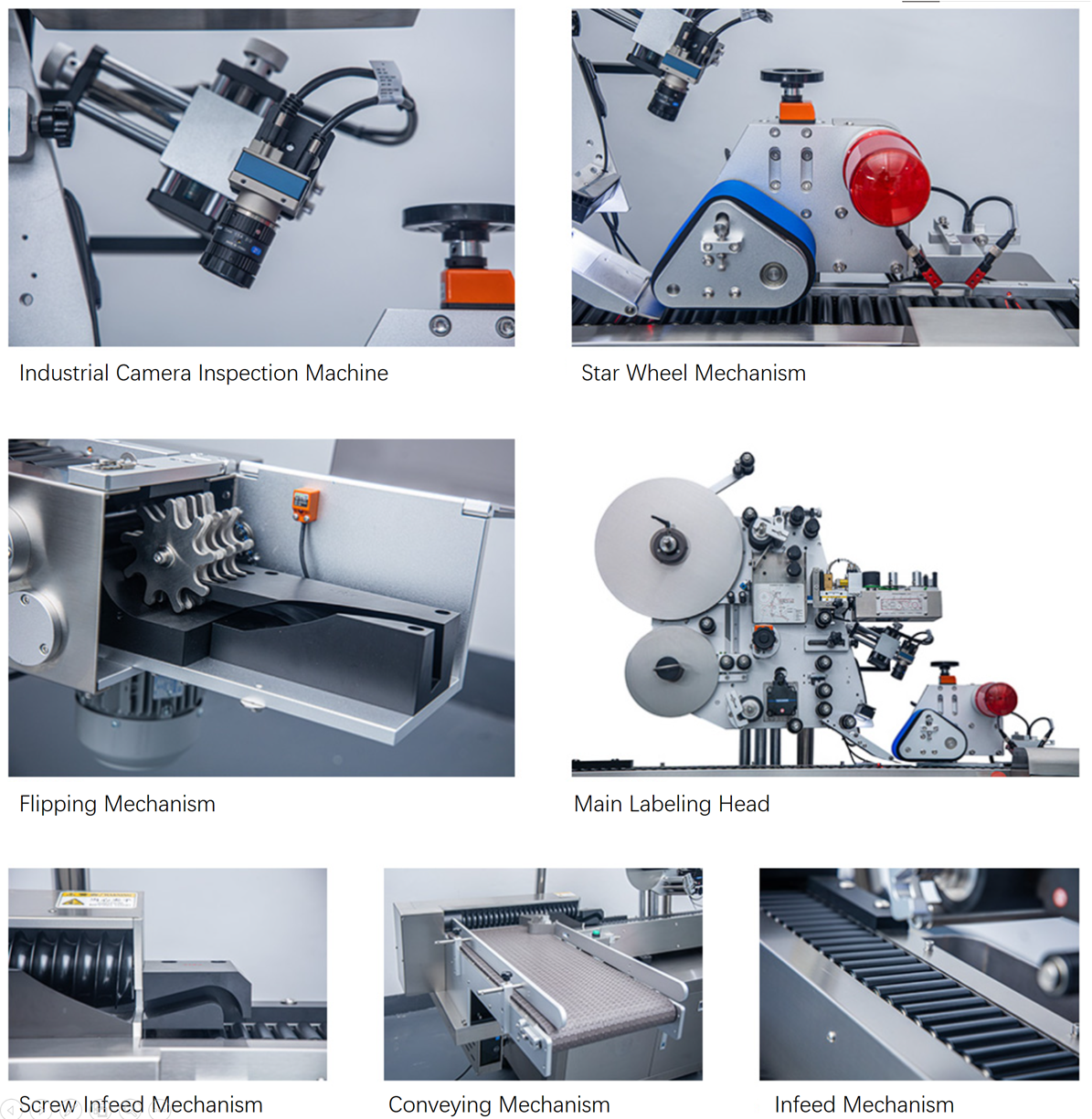

Structure & GMP Design
The main surfaces of the machine are made of 304 stainless steel, with no sharp edges or corners. The overall structure is simple, aesthetically pleasing, safe, and reliable.
The machine is equipped with an integrated safety enclosure. Opening any protective door during operation will trigger an alarm and automatically stop the machine, ensuring operator safety.
Control System
Controlled by Siemens PLC and an industrial computer, with major electrical components from internationally recognized brands
The HMI provides output displays including bottle count, label consumption, qualified product count, and rejected product count
Production quantities cannot be manually modified and can only be cleared; a production output report can be printed after batch completion
OPC UA interface reserved for connection with MES / LIMS, enabling production data integration and management
Utility Requirements

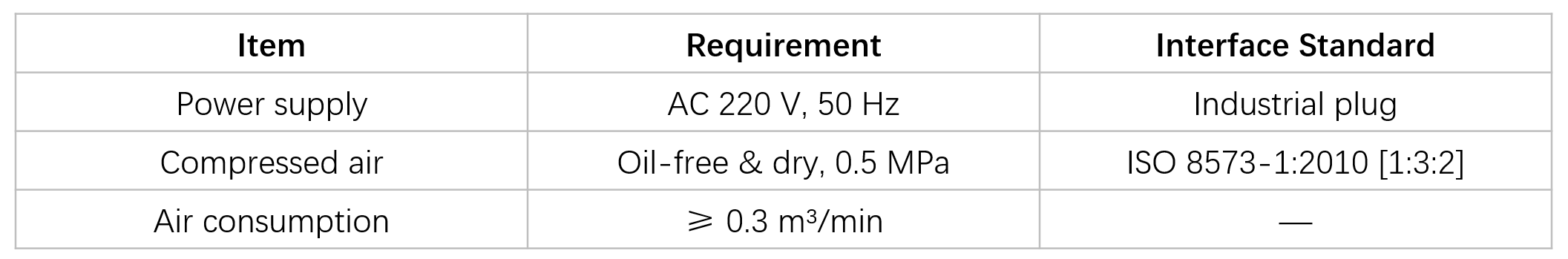

| Item | Requirement | Interface Standard |
|---|---|---|
| Power supply | AC 220 V, 50 Hz | Industrial plug |
| Compressed air | Oil-free & dry, 0.5 MPa | ISO 8573-1:2010 [1:3:2] |
| Air consumption | ≥ 0.3 m³/min | — |
