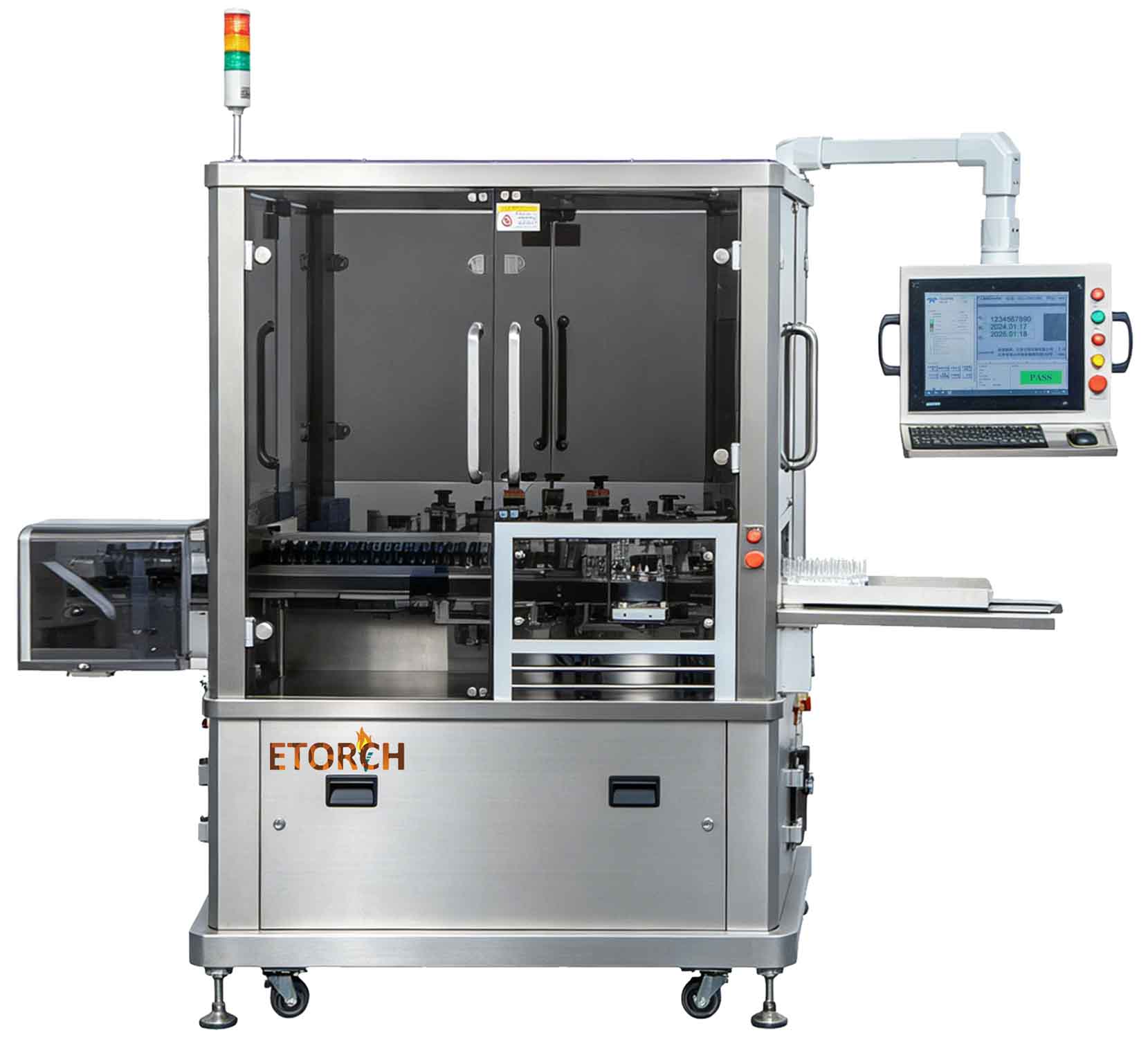

Y-750 Rotary Vertical Round Bottle Labeling Machine

Y-750 Rotary Vertical Round Bottle Labeling Machine

BRIEF INTRODUCTION

The Y750 Rotary Vertical Round Bottle Labeling Machine is specially designed for high-speed labeling of small round containers such as ampoules, oral liquid bottles, and vials. The machine adopts a starwheel feeding system combined with screw bottle separation to ensure stable conveying and precise positioning. Featuring high labeling speed and excellent accuracy, the three-section labeling unit is independently driven by separate motors to guarantee stable label transmission. The machine is equipped with a full protective enclosure, multiple inspection and rejection functions, online detection capability, and recipe management system. It is easy to operate and suitable for high-efficiency continuous pharmaceutical production and integrated production lines.

YouTube

Product Description Product Video Related News Download Information

Standalone Machine Positioning

Independently performs the processes of bottle separation / labeling / inspection / rejection, suitable for high-speed labeling of small round bottles and compliant with GMP standalone production requirements.

Applicable Containers & Specifications

Label roll specification: Inner diameter Ø76 mm; Outer diameter ≤Ø400 mm
Applicable containers: Ampoules, Oral Liquid Bottles, Cartridges
Bottle diameter range: Ø10 – 24 mm
Labeling speed: 0 – 650 bottles/min
Applicable label materials: Transparent labels, coated paper, PE, etc.
Label size range: Length 15 – 90 mm; Width 15 – 80 mm

Process Flow

Feeding → Machine Process: screw bottle separation → starwheel feeding → labeling → inspection → defective product rejection → Discharge

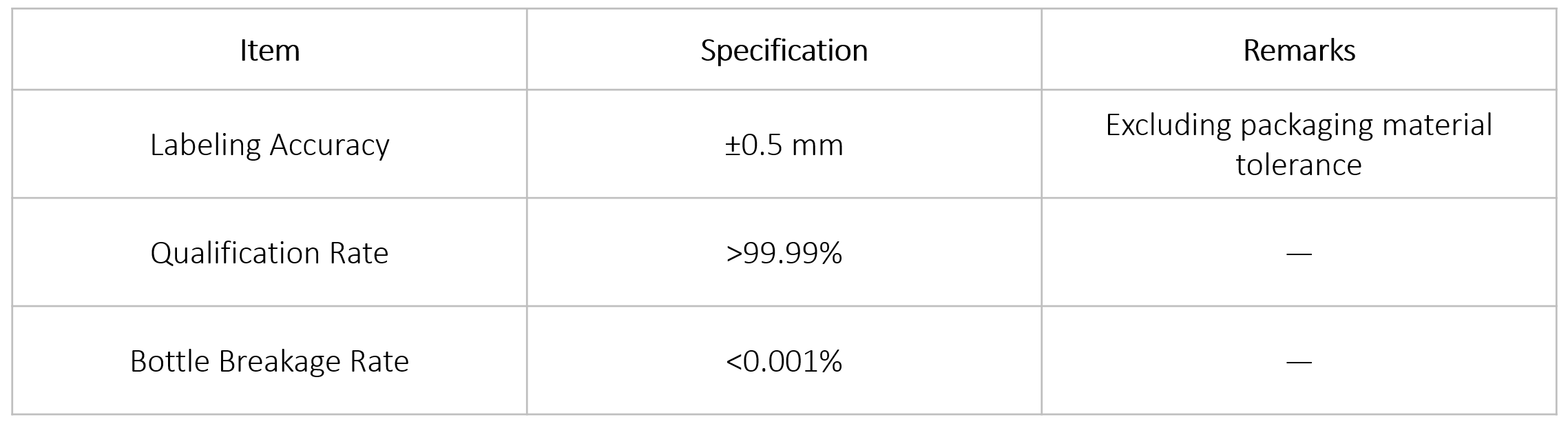

Key Performance Parameters

Structure & GMP Design

The machine adopts an integrated protective enclosure design. Opening any safety door during operation will trigger automatic alarm and shutdown, improving operational safety.
The labeling head features a three-section structure (label feeding, label pulling, and backing paper rewinding), independently controlled by separate motors to ensure stable label conveying and high-speed operation, with a maximum labeling speed of up to 95 m/min.

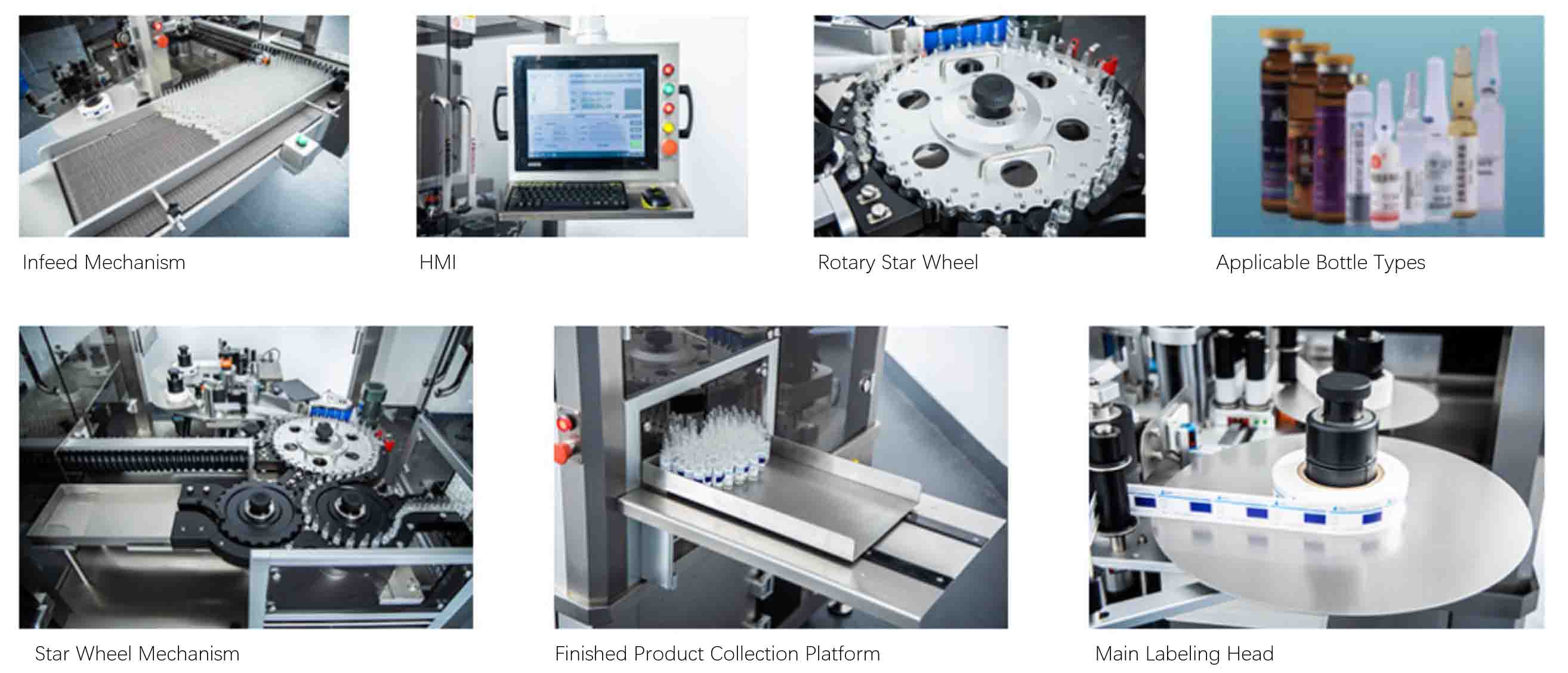

A small-pitch wide conveyor belt horizontal feeding structure ensures stable bottle feeding, low bottle breakage rate, and compatibility with different tray specifications.
The starwheel feeding system combined with positive-pressure adsorption enables stable bottle distribution and defective product rejection. The structure is simple, resistant to blockage, and easy to maintain.
Key transmission components adopt gear-driven structures with backlash elimination technology to ensure transmission accuracy and long-term operational stability.
Change parts such as starwheels, feeding wheels, and guide rails adopt positioning pin structures, eliminating repeated adjustment and improving format changeover efficiency.
The label pressing mechanism uses a synchronous belt wrapped with sponge material, ensuring smooth operation, excellent buffering performance, firm label adhesion, and protection of bottle surfaces.

Control System

The machine adopts a touchscreen Human-Machine Interface (HMI) supporting parameter setting, status monitoring, and fault alarm display for intuitive and convenient operation.
Recipe storage and recall functions are available, eliminating repeated parameter settings during product format changeovers and improving production efficiency.
The infeed section is equipped with photoelectric detection. When product supply is insufficient, the machine automatically slows down or stops to ensure stable operation.
Optional functions include online printing, character inspection, missing label detection, audit trail, and electronic signature systems to meet higher-level compliance requirements.
